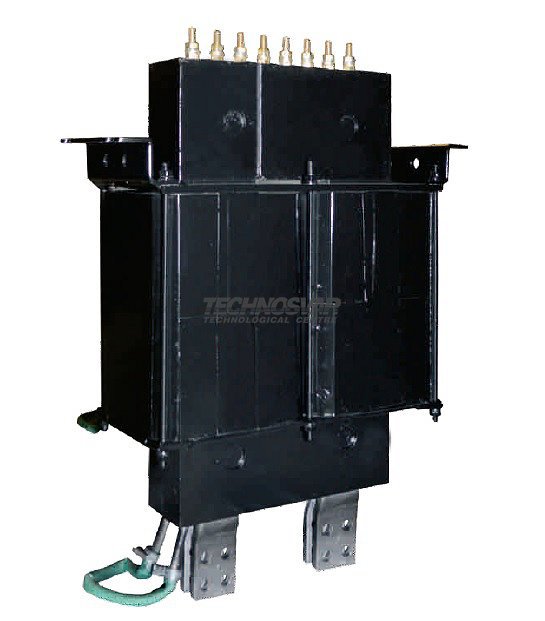

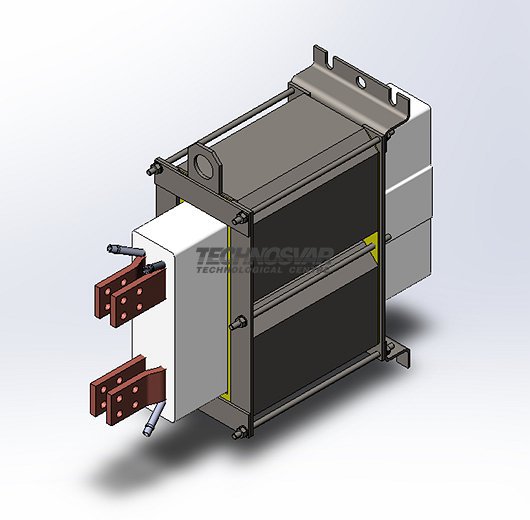

ТVК-75 / ТVK-75-1 transformer

Transformers ТВК-75/ТВК-75-1 are designed as power supply for contact welding machines (spot, seam, butt and projection welding); they may also be used for continuous current (no more than 9/8 кА) machines (for example,МТ-1615, МТ-1616, МТ-1928, МТ-1930, МТ-1933, МТП-01, МТП-1110, МСО-401, МТМ-160, МТМ-166, АТМС-14).

The transformers may be used as heat source for melting of fibreglass composite materials and basalt, for heating of cores for anchor heading, etc.

Characteristic features of transformer ТВК-75/ТВК-75-1

  • Liquid cooling
  • Insulation class «F» (maximum temperature – no more than 155 ˚С)
  • Core pieces providing for minimum electromagnetic energy waste are produced according to Unicore technology
  • Winding unit is filled with epoxy compound
  • Climatic category - УХЛ4







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

  ТВК-75 ТВК-75-1
Mains voltage at 50Hz frequency 380 V
Ratedprimaryvoltage 365 V
Secondary no-load voltage:
at joining-up in parallel 2,9…6,3 V 3,10…7,3 V
at joining-up in series 5,9…12,6 V 6,3…14,6 V
Numberofcontrolsteps 8
Number of independent secondary coils 2
Continuous secondary current:
at joining-up in parallel 9,0 кА 7,8 кА
at joining-up in series 4,5 кА 3,9 кА
Power at 50% duty cycle at maximum control step 75 кVА
Insulation class F
Cooling water

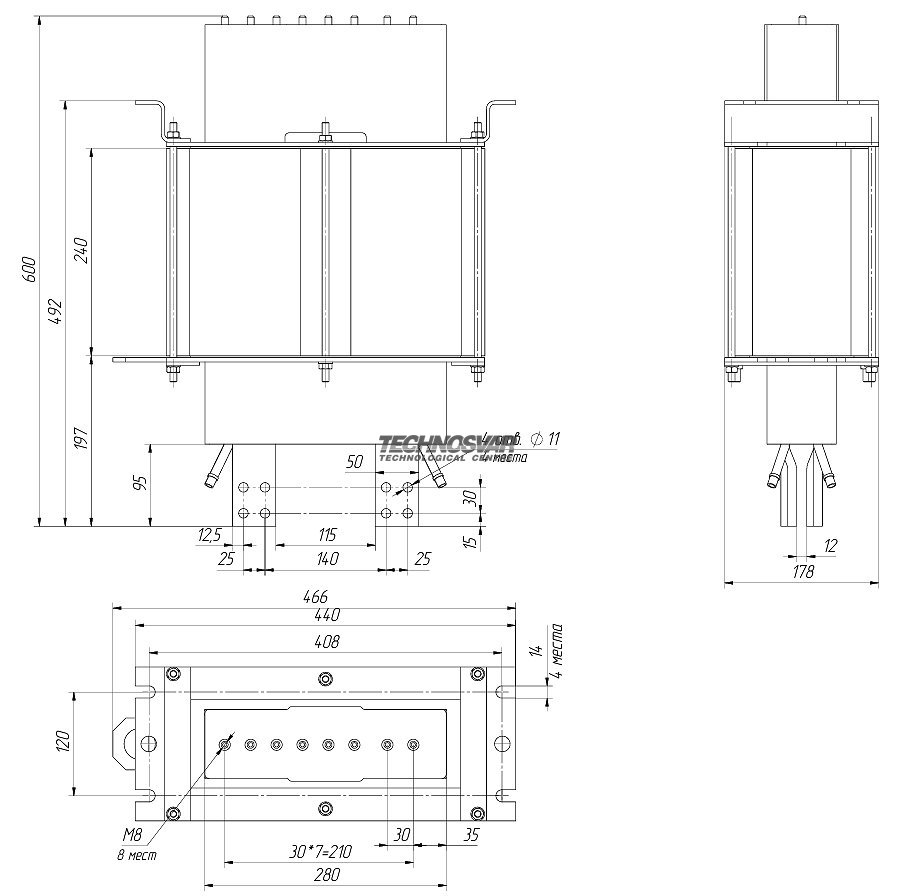

Overall dimensions (LxWxH), not more than 602х435х170 mm
Weight, not more than 115 kg
