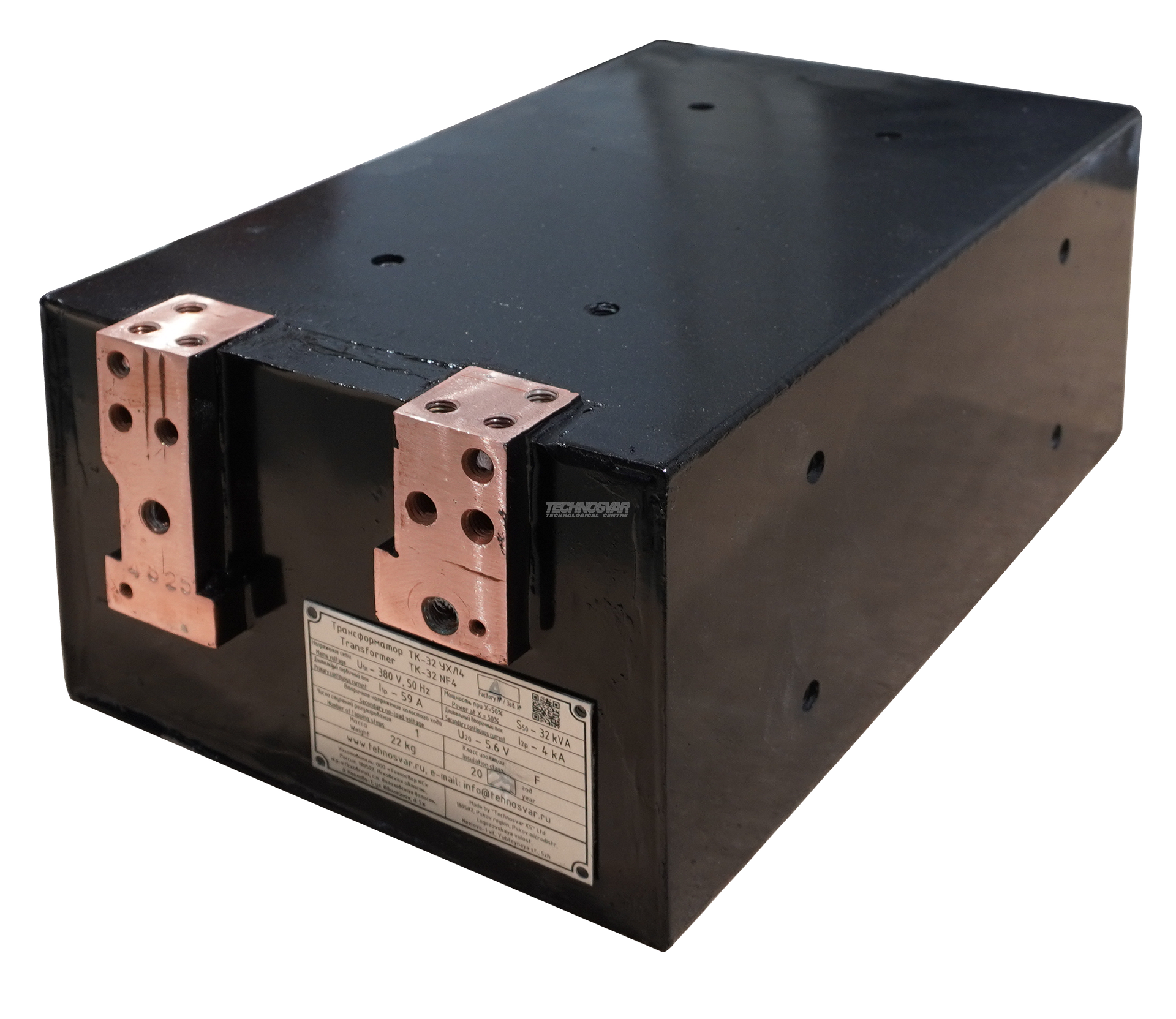

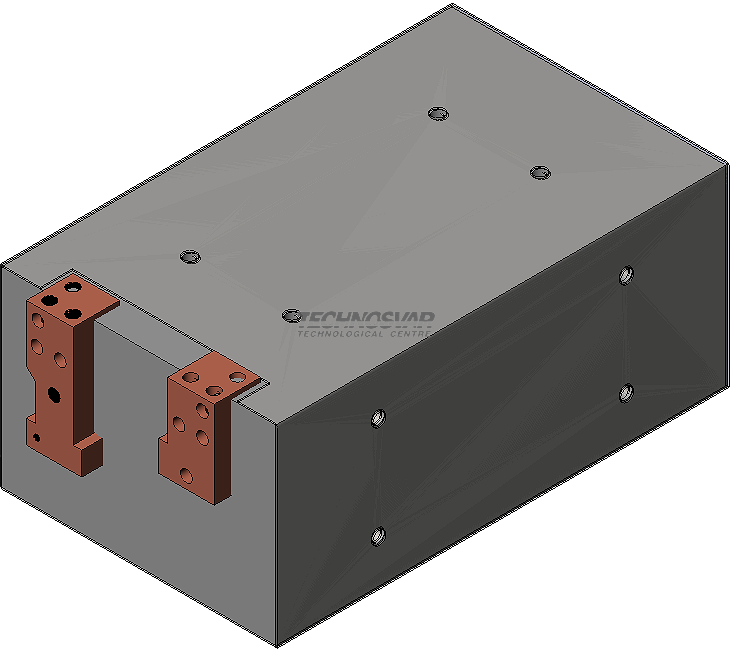

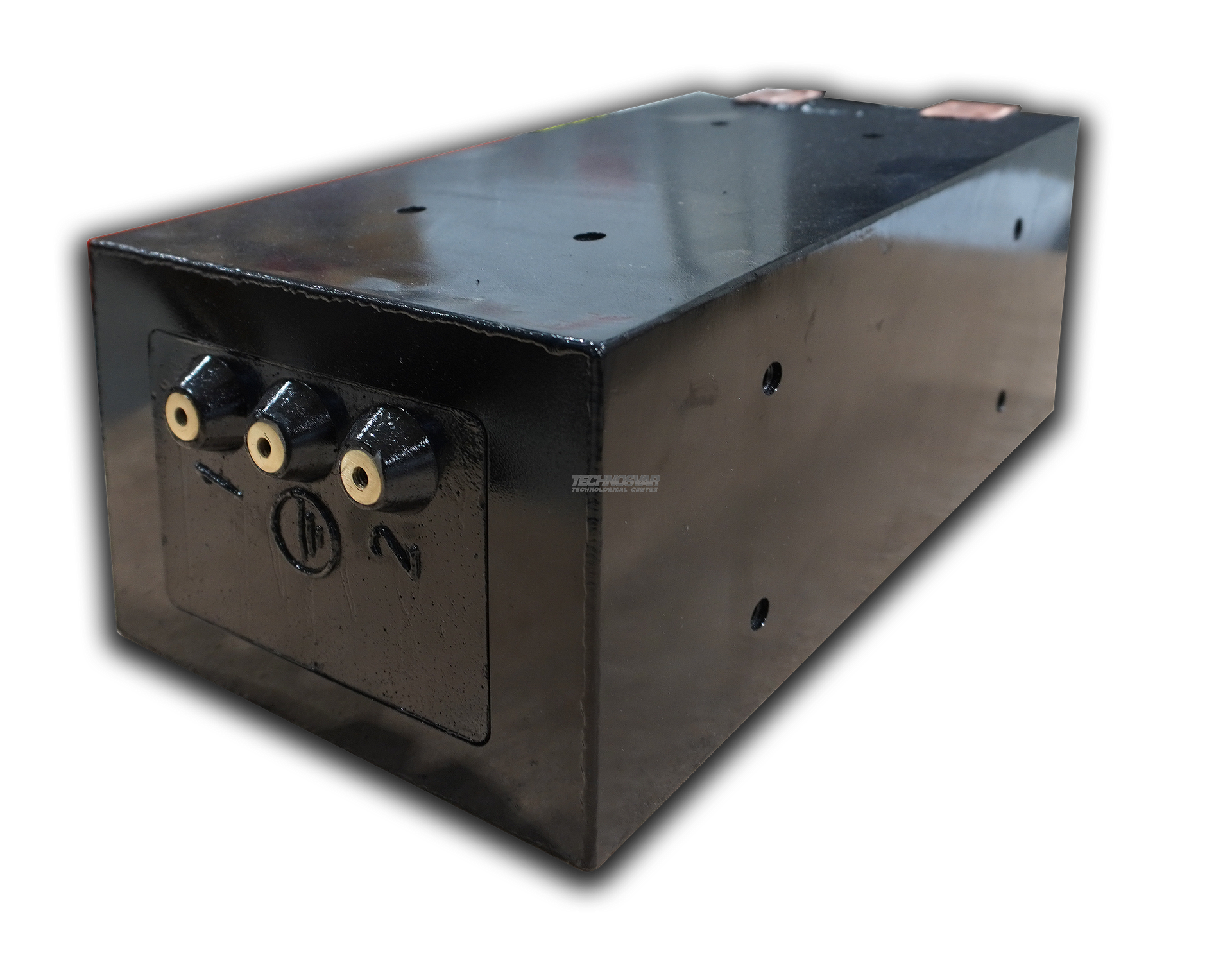

ТК-20, ТК-32 transformer

Transformers ТК-20, ТК-32 are designed as power supply for robot-based contact welding ofautomotive bodies; they may also be used for all continuous current (no more than 4 кА) spot machines (for example, МТП-05, МТП-07).

Characteristic features of transformer ТК-20/ТК-32

  • Liquid cooling
  • Insulation class «F» (maximum temperature – no more than 155 ˚С)
  • Core pieces providing for minimum electromagnetic energy waste are produced according to Unicore technology
  • It is filled with epoxy compound (cased structure)
  • Climatic category - УХЛ4





         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.



  ТК-20 ТК-32
Mains voltage at 50Hz frequency 380 V
Ratedprimaryvoltage 380 V
Secondary no-load voltage 3,6 V 5,6 V
Numberofcontrolsteps 1
Number of independent secondary coils 1
Continuous secondary current 4 кА
Power at 50% duty cycle at maximum control step 20 кVА 32 кVА
Insulation class F
Cooling water
Overall dimensions (LxWxH), not more than 112х150х275 mm
Weight, not more than 17 kg 22 kg
