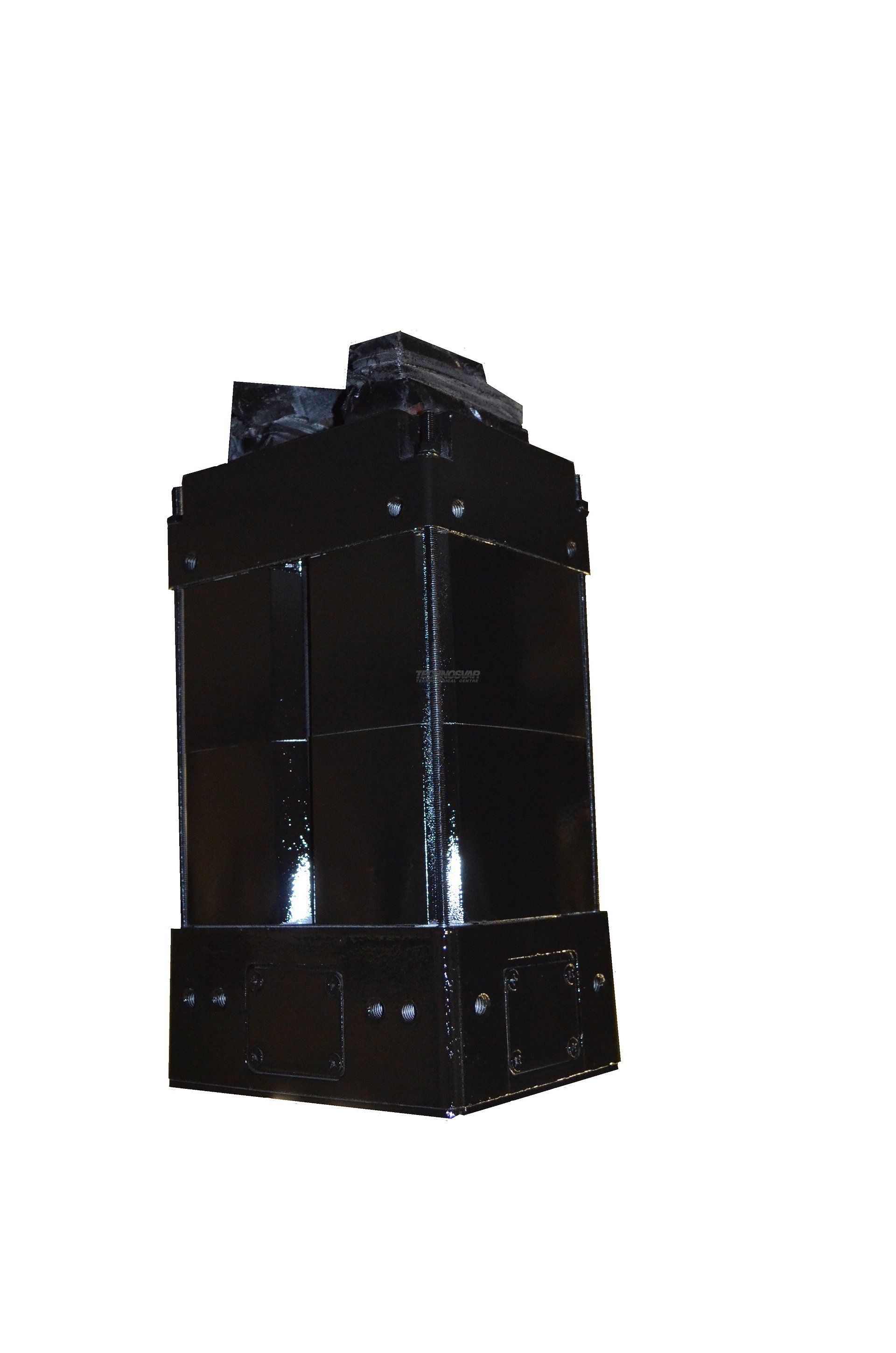

ТК-301, ТК-302, ТК-401, ТК-501 transformers

Transformers of ТК-301,ТК-302, ТК-401, ТК-501 type are designed as power supply for contact welding machines; they may also be used for continuous current (no more than 5,6; 6,4; 7,1; 9,1 кА) machines (for example, МТ-1701, МТ-1861, МТ-1930-1, МТ-1930-2, МТ-2221, МТ-2361, МТ-2661, МТ-3001, МТ-3501, МТP-02, МRТ-3501, МRТ-4001).

Characteristic features of transformers ТК-301,ТК-302, ТК-401, ТК-501

  • Liquid cooling
  • Insulation class «F» (maximum temperature – no more than 155 ˚С)
  • Core pieces providing for minimum electromagnetic energy waste are produced according to Unicore technology
  • Winding unit is filled with epoxy compound
  • Climatic category - UKHL4







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

  ТК-301 ТК-302 ТК-401 ТК-501
Mains voltage at 50Hz frequency 380 V
Ratedprimaryvoltage 365 V
Secondary no-load voltage:
at joining-up in parallel
at joining-up in series

3,0…5,0 V
6,0…10,0 V

5,0…7,0 V
10,0…14,0 V

7,0…10,0 V
14,0…20,0 V

9,61…14,00 V
19,22…28,00 V
Number of control steps 4
Number of independent secondary coils 2
Continuous secondary current:
at joining-up in parallel
at joining-up in series

5,60 кА
2,80 кА

6,40 кА
3,20 кА

7,10 кА
3,55 кА

9,10 кА
4,55 кА
Power at 50% duty cycle at maximum control step 40 кVА 60 кVА 100 кVА 180 кVА
Insulation class F
Cooling водяное

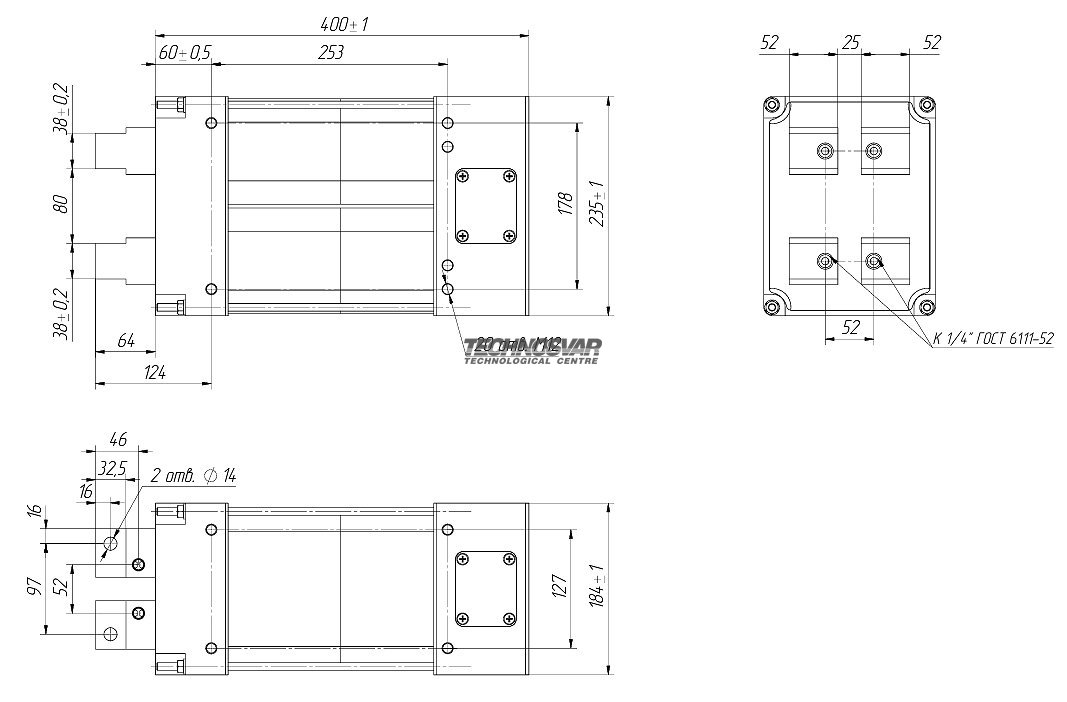

Overall dimensions (LxWxH), not more than 470х235х184 mm 560х235х184 mm 695х235х184 mm 809х320х240 mm
Weight, not more than 80 kg 100 kg 135 kg 260 kg
