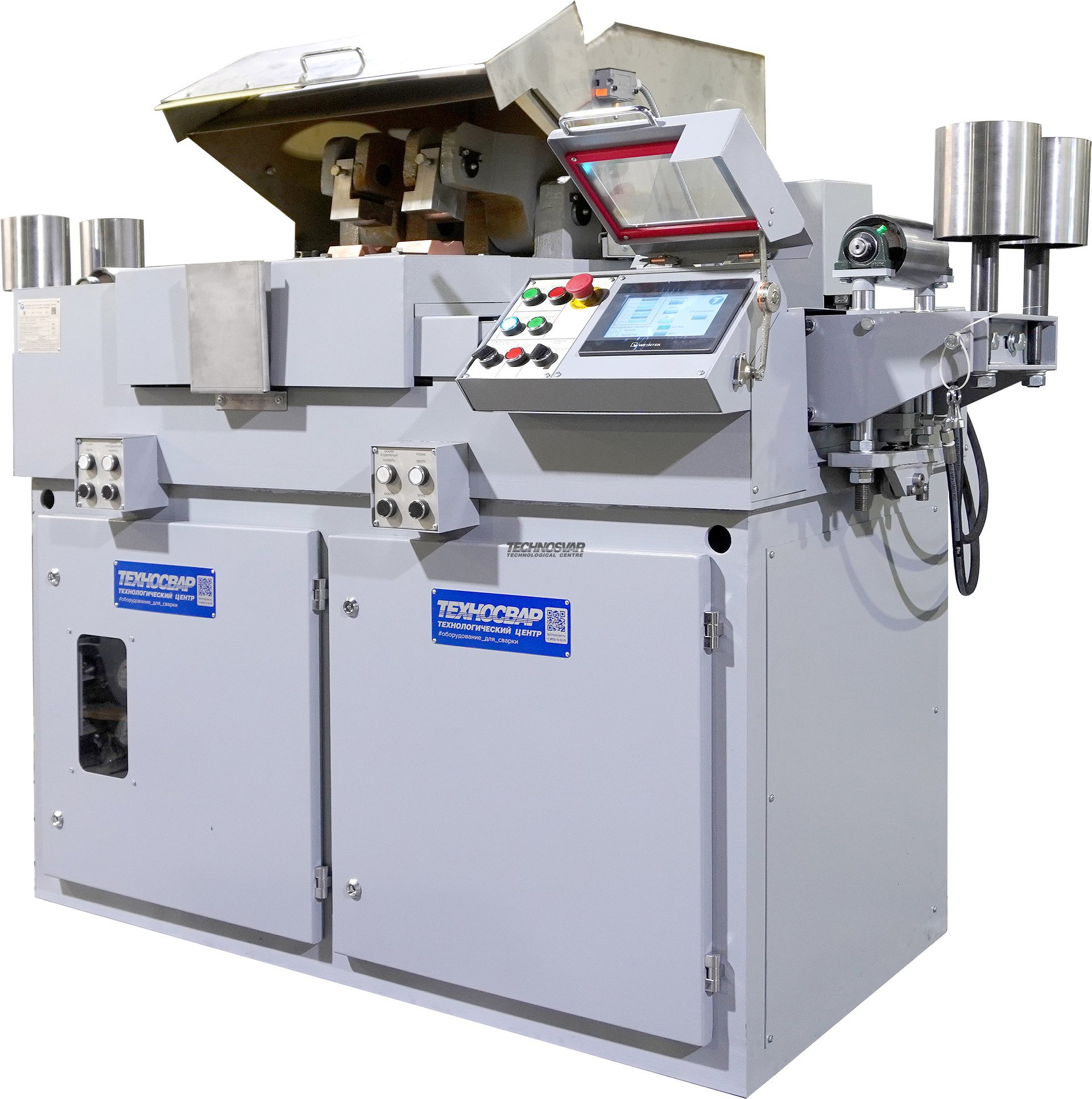

МSО-10.01 Machine for burn-off resistance butt welding

МSО-10.01 Welding Machine is designed for contact butt welding using the method of continuous reflow and reflow with preheating of rolled metal, mainly of compact section, from carbon and alloy steels with section up to 3000 mm and outer diameter 16 to 62 mm, is used in machine building.

Advantages of the МSО-10.01 Welding Machine

  • The modern control and quality control system continuously monitors current parameters with the registration and certification of each welded joint.
  • The machine is equipped with a patented automatic burr removal device after hot welding (patent No. RU 2 515 864 C1)
  • Admission control of the welding process
  • Storing up to 20 welding programs in memory
  • Flexible process of reflow control
  • The machine provides welding of the strip 15x150 mm
  • Possibility of embedding in a production line

Additional options:

  • Stand-alone liquid cooling system of a closed type







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

Mains voltage at frequency 50Hz 380 V
Maximumsecondary current 40 kA
Rated continuous secondary current 9 kA
Maximum power in case of short circuit 323 kVA
Power with a 50% duty cycle 97 kVA
Clamping force of workpieces 20000 daN
Sludge force 10000 daN
Type of drive clamping workpieces hydraulic
Type of drive draft hydraulic
Type of fusion and heating drive hydraulic
Maximum draft speed, not less than 150 mm/s
Melting range control range 0,1 to 10 mm/s
Largest travel of the movable clamp 100 mm
Limits of regulation of a voltage of idling 3,9 to 7,8 V
Welding power regulation: -step 16 steps
Pressure control in the system mechanical
Short-term productivity when welding bars with a diameter of 55 50 welding/h
Cooling of live parts forced liquid

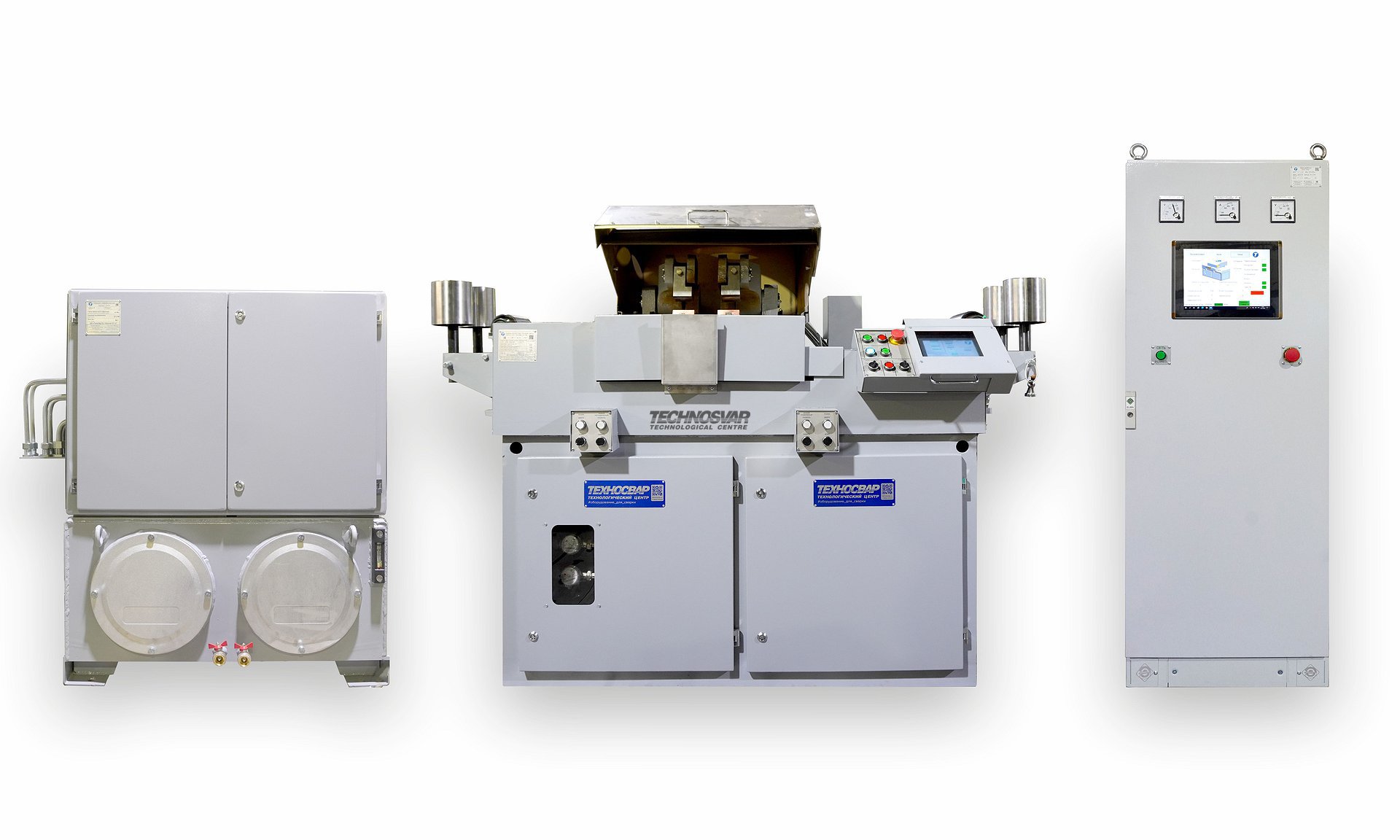

Overall dimensions (LxWxH), not more than
- welding device
- cabin with equipment
- hydropower stations

1570х1200х1630 mm
500х800х2100 mm
1150х710х1190 mm
Weight, not more than
- welding device
- cabin with equipment
- hydropower stations


2000 kg
100 kg
700 kg
