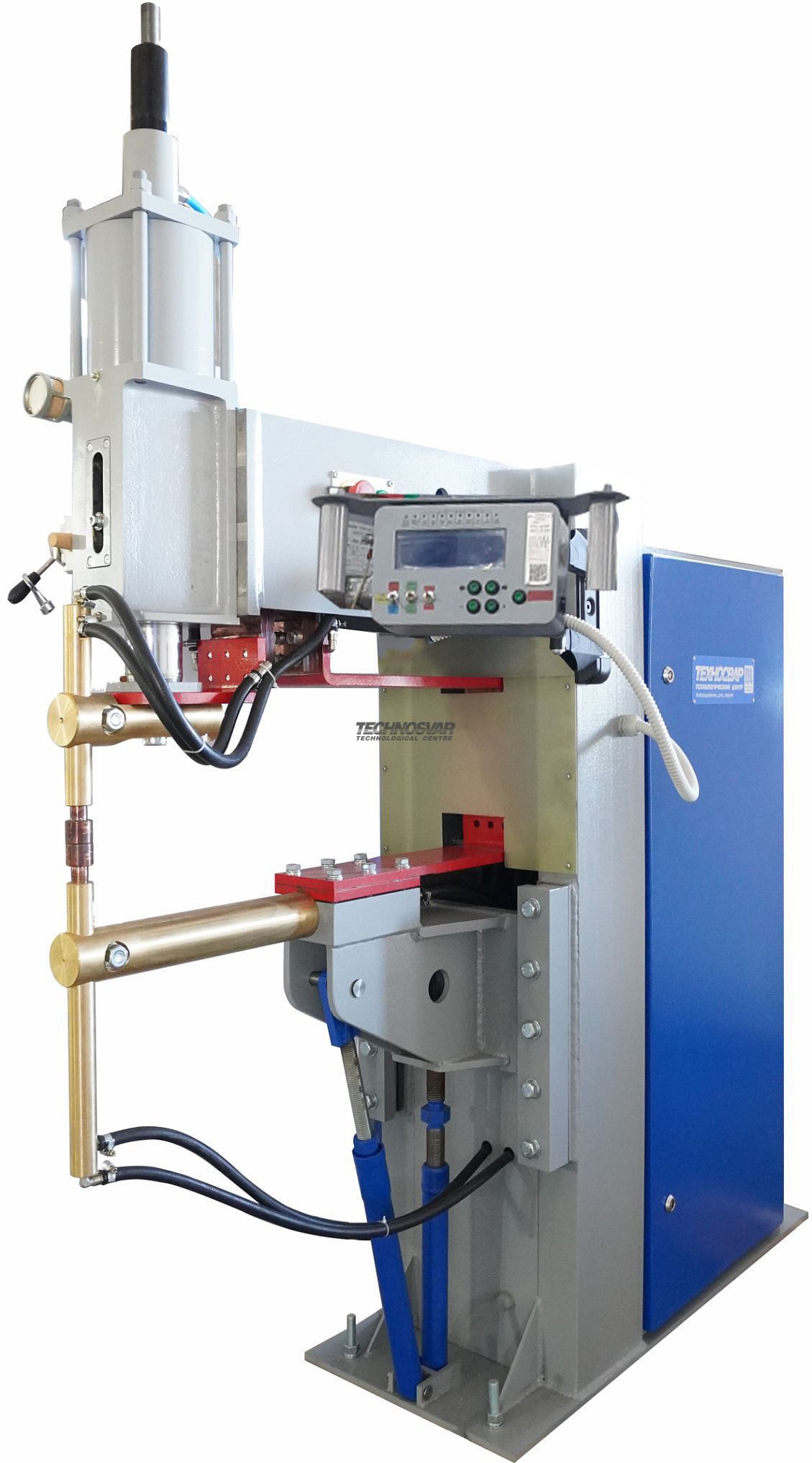

Welding machine MT-1930-1 is designed for contact spot welding by alternating current of metal structures and products.
Technological capabilities of this welding machine allow welding of a wide range of products. The thickness of the material to be welded depends on the material type and quality requirements to the welded joint.
Welding thickness ranges
| Low carbon steel | 0,5+0,5 to 3,0+3,0 mm* |
| Low alloy steel | 0,5+0,5 to 2,0+2,0 mm* |
| Stainless steel | 0,3+0,3 to 1,5+1,5 mm* |
| Titanium alloys | 0,5+0,5 to 2,5+2,5 mm* |
| Chromium-nickel alloys | 0,5+0,5 to 0,8+0,8 mm* |
| Copper alloys | 0,3+0,3 to 0,8+0,8 mm* |
| Aluminum alloys | 0,5+0,5 to 0,6+0,6 mm* |
Diameter ranges for welded cruciform joints of rod reinforcement
| Class АI, BI | 8+8 to 16+16 mm* |
| Класс AII, AIII | 8+8 to 12+12 mm* |
* When welding parts of different thicknesses, the welding mode is determined by the smallest thickness of the part.
Advantages of the welding machine МТ-1930-1
- It is produced of Russian raw materials that have all the necessary certificates
- Microprocessor control based on the contact welding regulator RKS-810, also produced by us, can store 20 welding programs in memory and consistently reproduce the welding parameters
- Setting of welding parameters on the front panel of the RKS-810 contact welding regulator and digital indication of the set parameters
- As a source of welding current we use a transformer, also produced by us, filled with epoxy compound
- Liquid cooling of the welding transformer, secondary circuit
Additional options
- Autonomous liquid closed cooling system
- Autonomous compressor device
- Electrodes for contact welding of various configurations
- Assembly and welding devices
