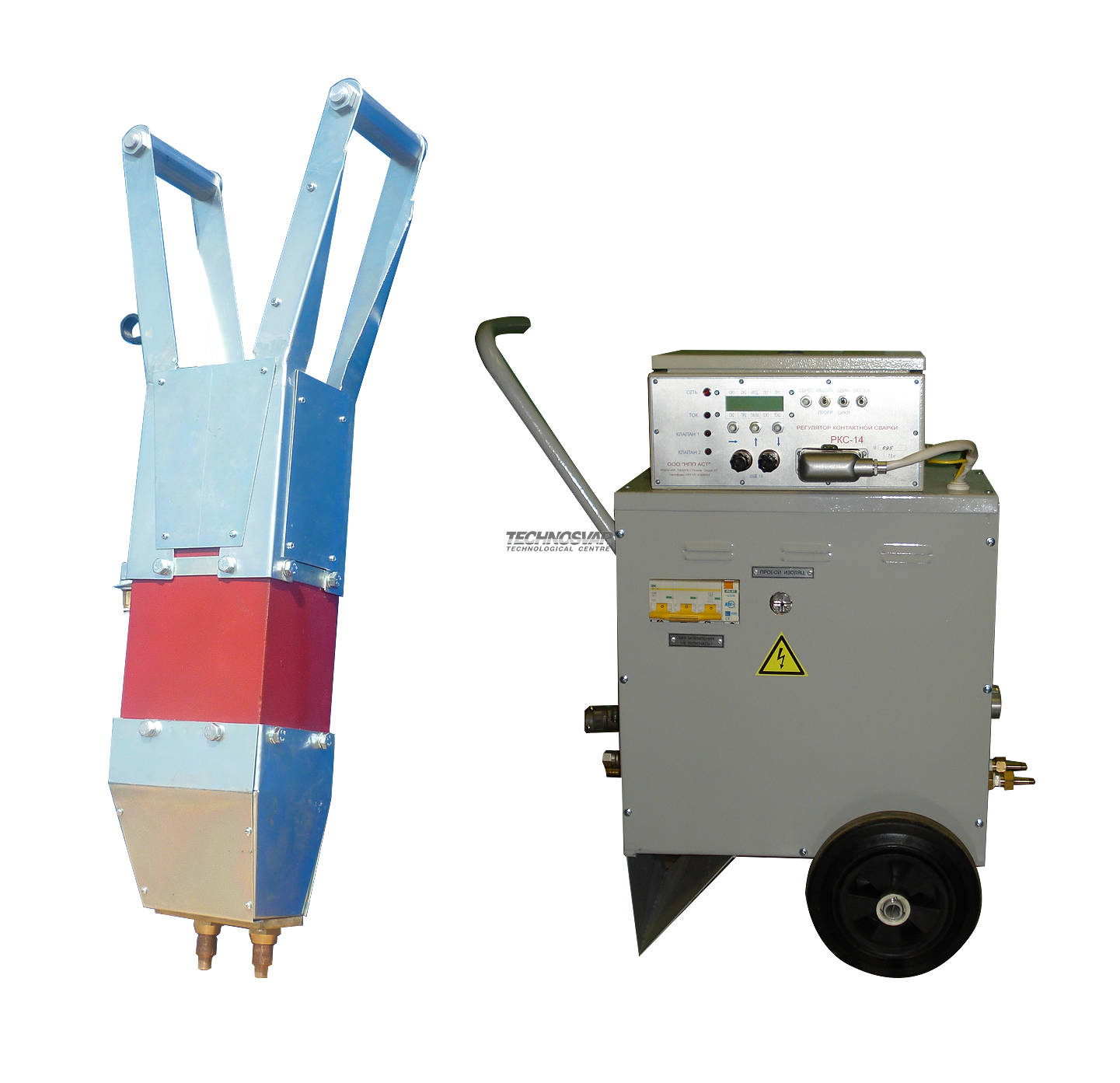

МТP-05 mobile spot welding machine

The MTP-05 mobile welding machine is designed for one-sided contact spot welding with alternating current.

Technological capabilities of this welding machine allow welding of a wide range of products. The thickness of the material to be welded depends on the material type and quality requirements to the welded joint.

Welding thickness ranges

Low carbon steel 0.3+0.5 to 2.0+2.5 mm*
Stainless steel 0.5+0.5 mm*

* When welding parts of different thicknesses, the welding mode is determined by the smallest thickness of the part.

Advantages of the welding machine MTP-05

  • It is produced of Russian raw materials that have all the necessary certificates
  • Microprocessor control based on the contact welding regulator RKS-810, also produced by us, can store 20 welding programs in memory and consistently reproduce the welding parameters
  • Setting of welding parameters on the front panel of the RKS-810 contact welding regulator and digital indication of the set parameters
  • As a source of welding current we use a transformer, also produced by us, filled with epoxy compound



Additional options

  • Autonomous liquid closed cooling system
  • Technical characteristics of the current source







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

Mains voltage at 50Hz frequency 380 V
The highest secondary current 12 kA
Rated continuous secondary current 4 kA
Maximum power in case of short circuit 46 kVA
Power at 50% duty cycle 20 kVA
Electrode compression drive manual
Electrode stroke rectilinear
The largest electrodes compression force 50 daN
Limits of idle voltage adjustment up to 3.6 V
Welding power control phase
Welding power control limits 25 — 100 %
Cooling of current-carrying parts forced liquid
Overall dimensions (LxWxH), not more than:
- control unit
- two-electrode head

580х390х710
755х280х145
Weight, not more than:
- control unit
- two-electrode head

75 kg
25 kg
